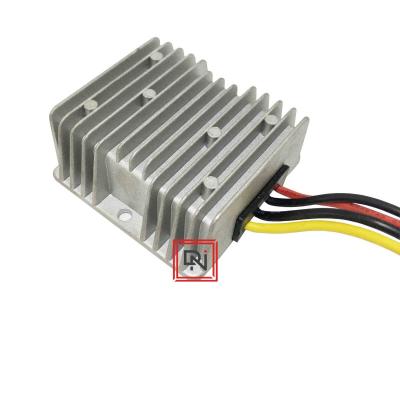

DC-DC Step Down
Step down (voltage reducer or booster), non-isolated dc-dc converter
Features:
- all-epoxy sealed containers, Waterproof;
- Die-cast cases, light compact, convenient to use and transport;
- Full-load efficiency:> 90%;
- Ambient temperature at -10 ? - 45 ?;
- with overload / over-current / over / low voltage protection (some of the products have the protection of plus or minus reverse), stable performance.
|
Power |
V-in |
V-out |
I-out |
Weight(g) |
Size (L×W×H) mm |
|
60W |
24V |
12V |
5A |
175g |
60×65×23 |
|
120W |
24V |
12V |
10A |
250g |
74×73×27 |
|
180W |
24V |
12V |
15A |
300g |
74×73×27 |
