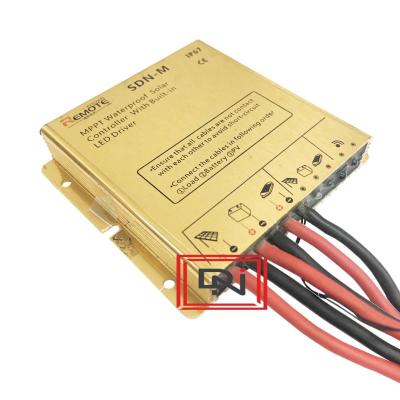

SDN-M MPPPT

Product Description

SDN series solar controller built in led driver, powered by solar energy, combines solar battery charging / discharging management function and LED light source constant-current driving mechanism. It’s widely used for solar street lamps and solar courtyard lighting system. This product series is used to manage charging of battery with solar panels, discharging of loads with battery, constant-current driving of LED lamp holder, and power control. Multiple operation modes are provided including automatic mode, light-control mode, and manual mode. A test mode is also available for engineering installation. The built-in smart mode provides a number of automatic power derating curve choices as well as extendable external controls (Infrared Motion sensor, remote communication).

Main Features :

• 6 Times periods Load Control(Timer+Dimmer)
• Intelligent system for envirnomentional monitoring,automatic adjustment of power,effectively extending the battery life.
• Automatic 12v/24v Detection
• Three-stage battery charging with PWM
• Compatible with Gel,AGM,Li etc battery type
• Waterproof IP67, Aliminum housing for better cooling
• Max output efficient of 96%
• -40?~+55? Wide temperature range
• Motion sensor function(optional).

 Technical Parameters :
